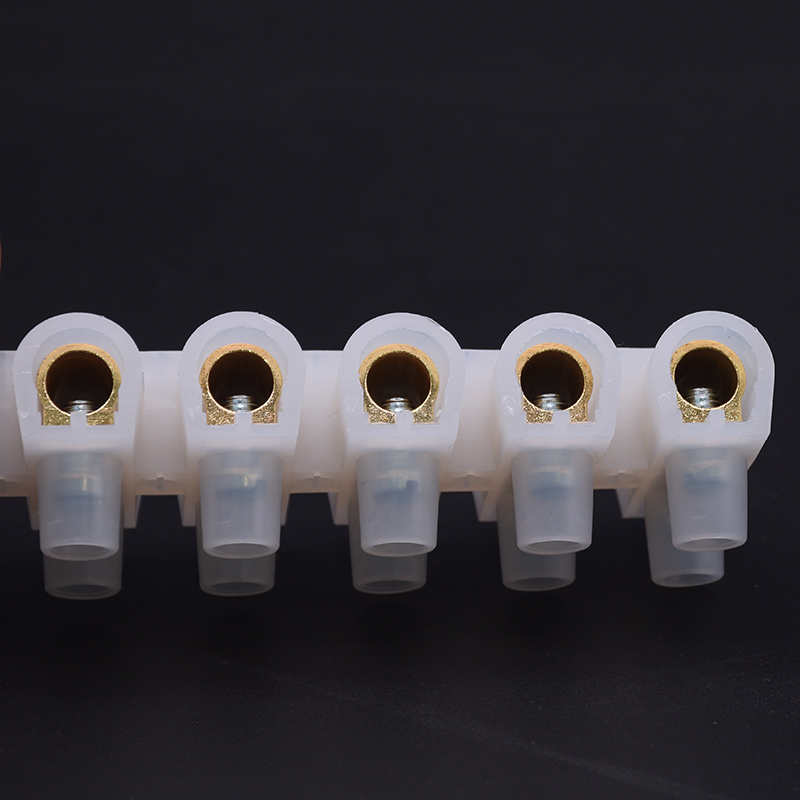

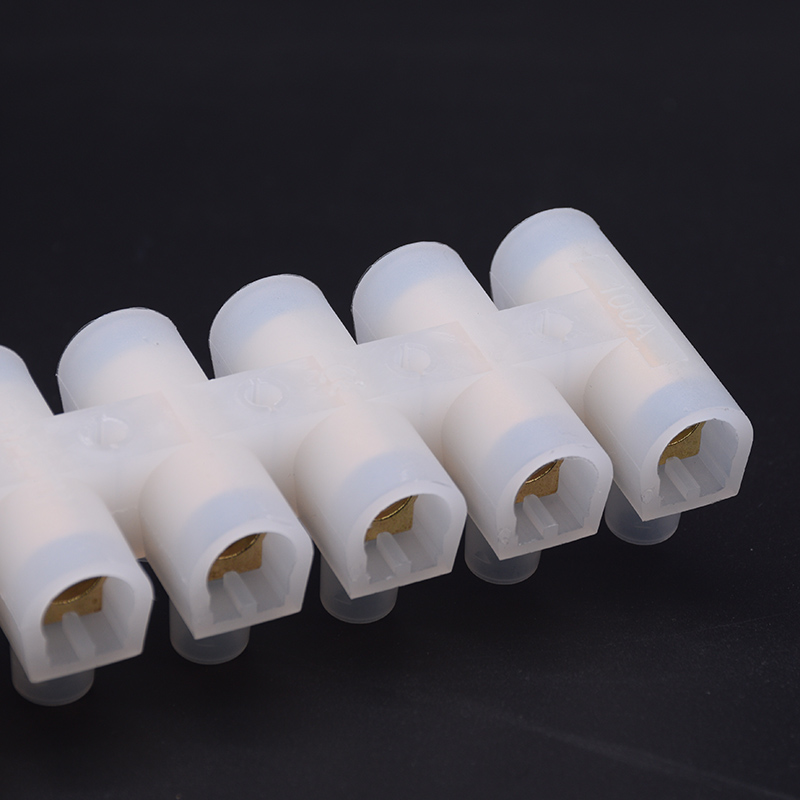

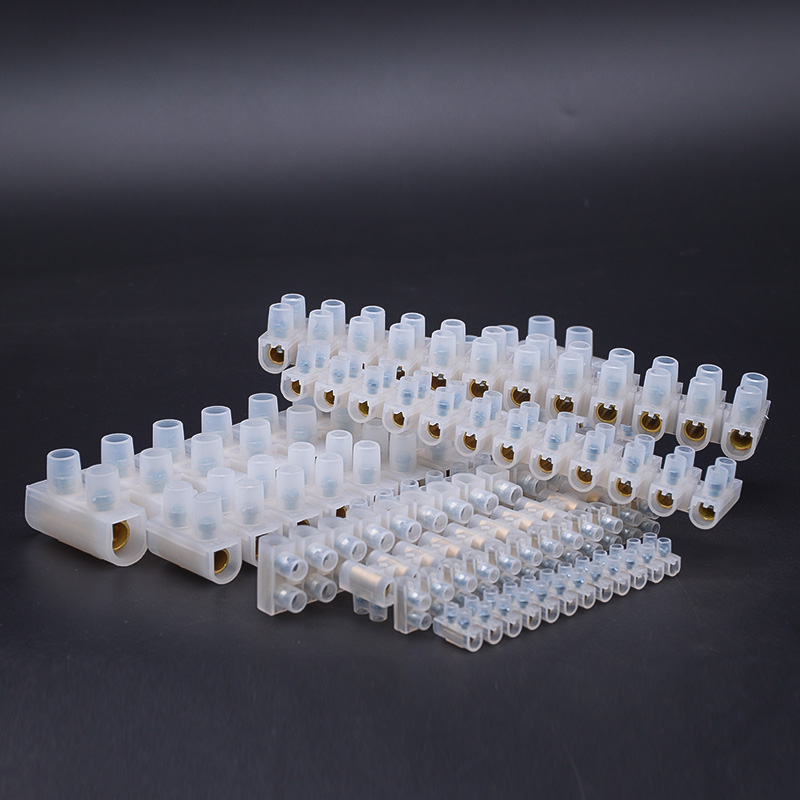

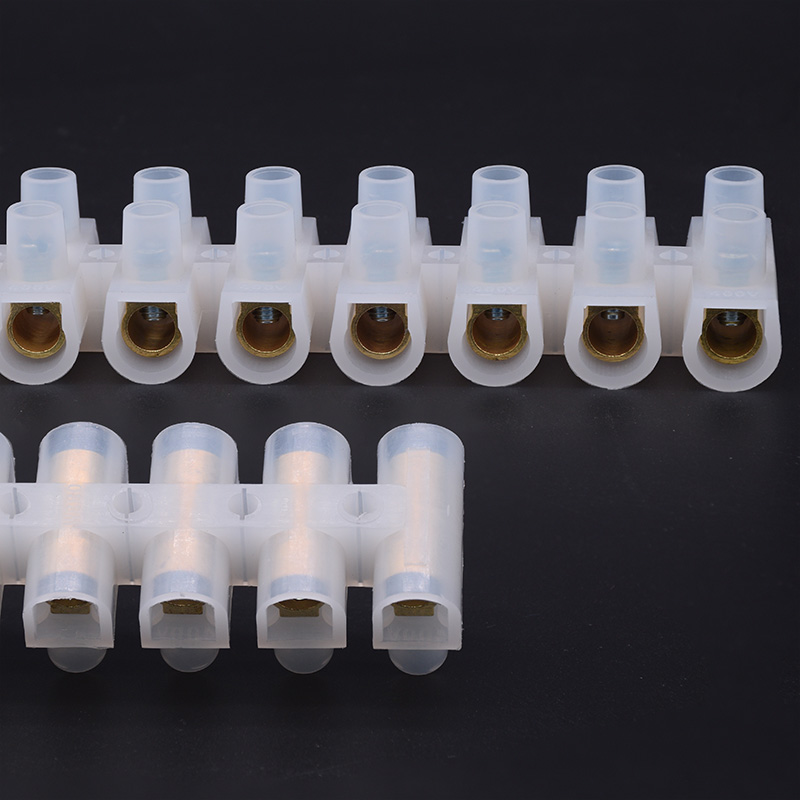

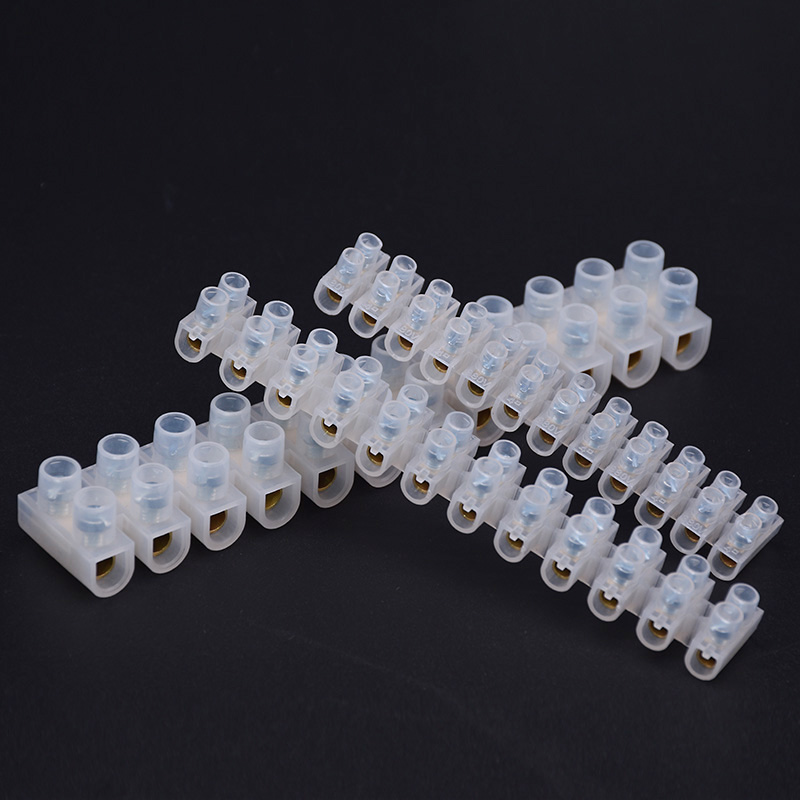

▎U TYPE TERMINAL STRIP SCREW
U type Terminal Strip Screw are made from high quality brass and outer is made from PE, with zinc plated steel screws.Each pair of terminals is insulated from the next, preventing circuits from disorder.The set screws secure wires reliable contact and help prevent accidental contact with the terminals.
▎PRODUCT FEATURES
The connectors are easy to divide and require a positive screw driver to easily tighten the connections.
This is a high strength product and is non-flammable.
it has acid and erosion control, well insulated.
it will not deteriorate with age.
▎PHYSICAL PROPERTIES
| Style | Feed through terminal blocks |
| Type | U type |
| Shell material | PE |
| Conductor material | Brass |
| Screw material | Steel,zinc plated |
| Volt | 380V |
| Amp | 3A~100A |
| working temperature | -40℃ to 65℃ |
| Standard color | Natural,black,red,green,yellow,blue |
▎DATA SHEET
| Part No | Wire Range | Amp | Volt | L | W | H | E | F | Φ | Screw Size | PCS/CTN |
| mm | |||||||||||
| SP003-01 | 2.5~4.0mm² | 3A | 380V | 91.4 | 15.6 | 10.8 | 7.5 | 2.5 | 3.0 | M2.5 | 1000 |
| SP003-02 | 4.0~6.0mm² | 6A | 380V | 112.5 | 15.5 | 12.8 | 9.5 | 2.9 | 3.3 | M3.0 | 1000 |
| SP003-03 | 6.0~10.0mm² | 10A | 380V | 128.0 | 20.6 | 15.0 | 10.8 | 3.1 | 4.2 | M3.0 | 500 |
| SP003-04 | 10.0~12.0mm² | 15A | 380V | 137.3 | 22.5 | 16.6 | 11.5 | 3.5 | 4.5 | M3.5 | 500 |
| SP003-05 | 12.0~14.0mm² | 20A | 380V | 137.5 | 22.7 | 17.7 | 12.0 | 3.5 | 4.7 | M4.0 | 400 |
| SP003-06 | 16.0mm² | 30A | 380V | 164.5 | 25.3 | 19.0 | 14.2 | 3.5 | 5.6 | M4.0 | 300 |
| SP003-07 | 25.0mm² | 60A | 380V | 185.5 | 29.2 | 24.0 | 15.8 | 3.5 | 6.6 | M5.0 | 200 |
| SP003-08 | 35.0mm² | 80A | 380V | 204.5 | 32.6 | 27.2 | 17.3 | 4.5 | 7.0 | M5.0 | 100 |
| SP003-09 | 40.0mm² | 100A | 380V | 250.0 | 45.6 | 30.6 | 21.5 | 4.7 | 9.0 | M6.0 | 50 |
▎APPLICATION
U type Terminal Strip Screw Widely used in a variety of lamp, decorated lighting, factory, household appliances and power distribution cabinets, distribution boxes and other transmission equipment.
